Description
Key Benefits & Features
Featherlight Carbon Fiber Frame
Constructed using aerospace-grade carbon fiber, the frame offers maximum strength with a minimum weight—making it one of the lightest power wheelchairs on the market.
Effortless Maneuverability
Equipped with high-performance motors and precision steering, the Carbon King ensures smooth navigation on both indoor and outdoor surfaces. Its compact size allows you to easily maneuver in tight spaces.
Powerful, Long-Lasting Battery
Enjoy worry-free freedom with a high-capacity lithium battery that provides an impressive range, allowing you to travel for hours without needing to recharge.
Customizable Seating System
Designed for comfort, the adjustable seating system ensures proper posture and support. Choose from a range of cushions, armrests, and backrests to create your perfect seating configuration.
Smart Control Panel
A user-friendly, intuitive control panel makes adjustments simple. Customize speed, driving mode, and more with just a few taps. The integrated joystick is precise and responsive, providing ultimate control.
Advanced Suspension System
Travel smoothly on various terrains with the advanced suspension system, ensuring a comfortable ride even on bumpy or uneven surfaces.

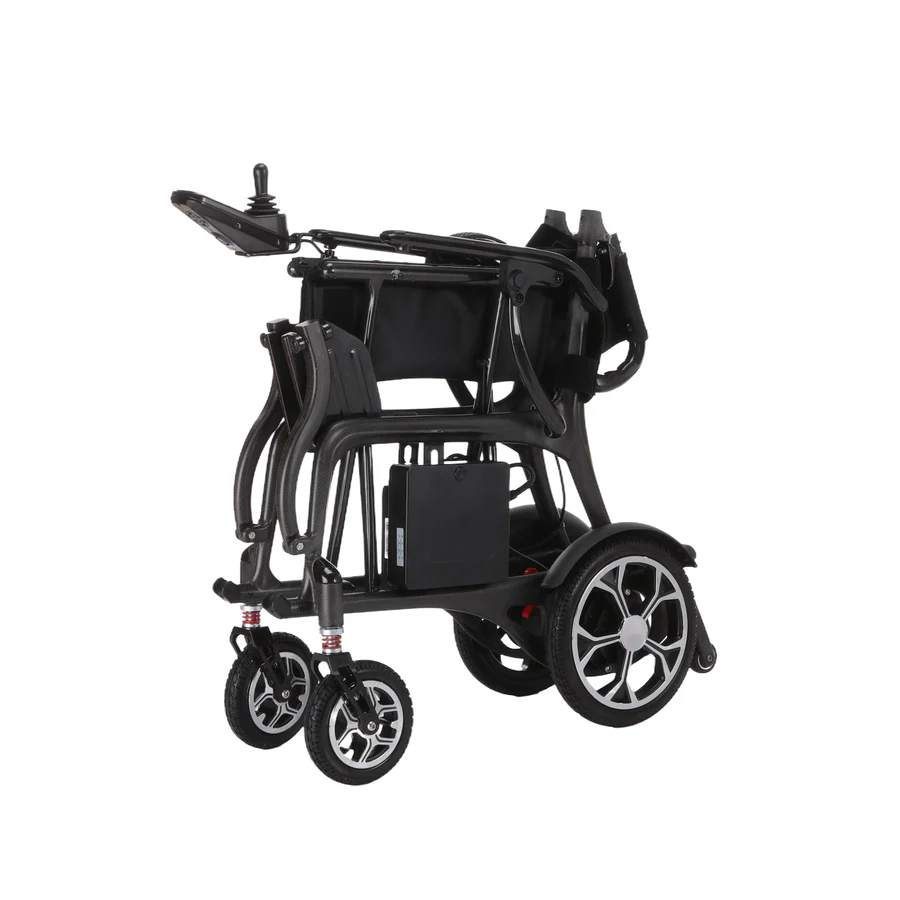

Ultra-Portable and Easy to Fold
With a quick and easy folding mechanism, the Carbon King fits effortlessly into cars, buses, or even airplane compartments, making it the ideal choice for frequent travelers.
Sleek, Modern Design
Combining function and style, the sleek carbon fiber body not only looks futuristic but is designed for optimal performance and strength.
Enhanced Safety Features
Includes automatic braking, anti-tip wheels, and front and rear lights for enhanced visibility and security.
Weather-Resistant Materials
Built to withstand all conditions, the Carbon King’s frame and components are weather-resistant, ensuring longevity and reliable performance even in harsh environments.
App Integration
Optional Bluetooth connectivity with an app that allows for remote control, diagnostics, and customization of your wheelchair settings directly from your smartphone.
| 1 | Frame Material | Full Carbon Fiber | |
|---|---|---|---|
| 2 | Motor | 200W*2 Brushless | |
| 3 | Battery | 24V 10Ah Lithium | |
| 4 | Controller | Import 360° Joystick (with Light and USB) | |
| 5 | Max Loading | 100-120KG | |
| 6 | Speed | 0-8km/h | |
| 7 | Seat Size | 44*40cm | |
| 8 | Seat Thickness | 2cm | |
| 9 | Front Wheel | 6.5" solid tyre | |
| 10 | Rear Wheel | 11" solid tyre | |
| 11 | Size (Unfolded) | 94.2(L)*58.5(W)*98(H)cm | |
| 12 | Size (Folded) | 78(L)*28(W)*70(H)cm | |
| 13 | Packing Size | 84*34*72cm | |
| 14 | G.W. (with package) | 18KG | |
| 15 | N.W. (without battery) | 11.3KG | |
| 16 | 10Ah Lithium Battery weight | 1.78KG | |
Overall length
946mm
Overall height
900mm
Rear wheel width
505mm
Backrest height
330mm
Seat width
380mm
Seat height
520mm
Seat depth
320mm
Armrests height
200mm
Load capacity
≤100kg
N.W. (270w Brushless motors)
17KG
N.W. (200w Brushless motors)
16KG
Distance from footrest to seat
350mm
Armrest to seat distance
200mm
Horizontal position of the shaft
732mm
Minimum Turning Radius
≤1100mm
Maximum controller output current
45A
Maximum charger output current
2A
Chassis height
90mm
G.W.
23KG
