Description
Take the controls with confidence: adjustable tiller and seat, solid tyres that don’t puncture, anti‑tip safety features, and reliable braking keep every ride smooth and secure. Plus, it looks great too—sleek, modern styling, colour choices, and refined finishes make it stand out in a crowd.
Whether you’re heading to the shops, travelling, or getting outdoors, the Freedom Warrior offers the perfect balance of portability, power, and comfort. Because mobility should be freeing, not limiting.
“Freedom in Every Fold”

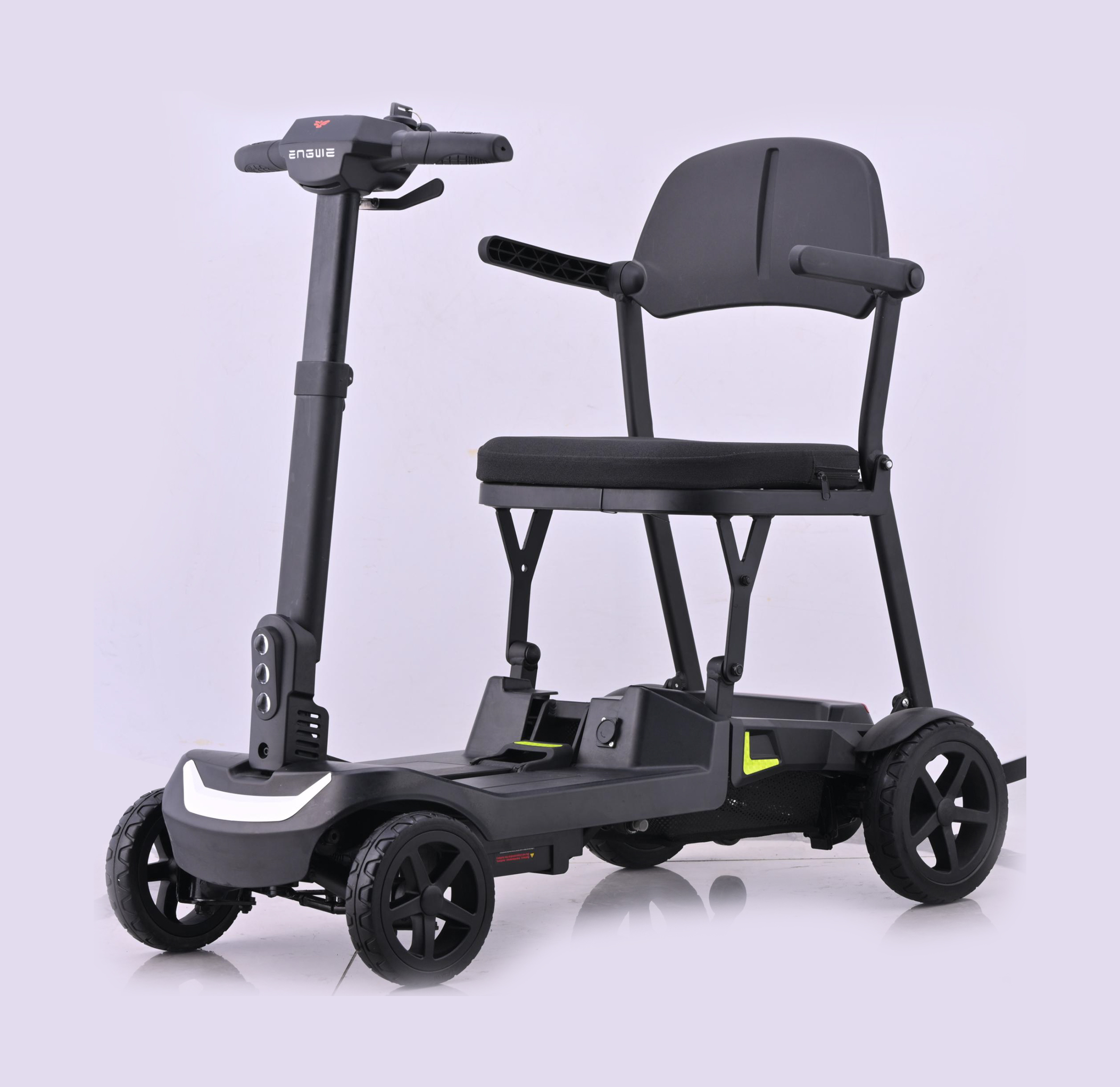

Meet the Freedom Warrior — your ultra‑light, ultra‑portable companion. Stability to take on a range of environments, one featherweight frame, folds in seconds, and drives you wherever you want to go in style and comfort.
Key Benefits & Features
Super‑Lightweight & Travel‑Friendly
Built with premium lightweight materials, the Freedom Warrior weighs just 16 kg without the battery. Perfect for car boots, public transport, or flights.Quick Fold Design
A smart folding mechanism that collapses flat or into compact dimensions in seconds—no tools required—so you can stow it, store it, or load it with ease.Comfort & Control
Ergonomic padded seat, adjustable tiller, flip up/removable armrests, intuitive LED control panel, and reliable braking ensures a smooth, safe ride.Impressive Range & Capacityl
Go up to ~15 km on a single charge with a lightweight lithium battery. Supports a load capacity of 120kg so it suits a wide range of users.Compact Storage
When folded, dimensions reduce significantly to store neatly in closets, car boots, or small storage spaces. Folds flat or into a low profile for travel.
Safety & Durability
Four wheel stability (better than 3 wheel alternatives), solid/fixed tyres anti tip wheels, reliable braking, good ground clearance for mild inclines. Meets relevant safety / travel standards.Stylish Design
Modern and sleek appearance, colour options, clean lines—designed not just to perform, but to look good doing it.
| Items | Specification | Material/Size | Functionality | Color |
|---|---|---|---|---|
| Frames | 946*500*90mm | Aluminum alloy | with light | Black |
| Seat Cushions | 565*400mm | PVC outer skin + PU foam padding, with adjustable armrests | Foldable | Black |
| Backrests | 420*305mm | PVC outer skin + PU foam padding | Foldable | Black |
| Front Wheel | Diameter 210mm | Wheel, 6" black PU | Black | |
| Rear Wheel | Diameter 210mm | Wheels, 9" black PU | Black | |
| Brakes | Braking distance | < 1500mm | Black | |
| Static Stabilisation | > 9°, < 15° | Black | ||
| Dynamic Stabilisation | > 6°, < 10° | Black | ||
| Controller | 45A | Black | ||
| Battery Pack | Capacity | 8Ah*1; 8Ah*2 | Removable | Black |
| Drive Motor | power (output) | 24V, 270W (Maotian Brushless Motor) | Black | |
| Vehicle Speed | 8km/h | Black | ||
| Charger | 24V 2A | Black | ||
| Theoretical mileage | 20-30km | ±25% | ||
| Folding method | Manual folding | |||
| Folding size | Dimensions: 30*50*74cm | |||
| Packing specification | Dimensions: 35*53*76cm | |||
| Packing Quantity | 20GP: 180 40HQ: 440 |
Size Specification
Overall length
946mm
Overall height
900mm
Rear wheel width
505mm
Backrest height
330mm
Seat width
380mm
Seat height
520mm
Seat depth
320mm
Armrests height
200mm
Load capacity
≤100kg
N.W. (270w Brushless motors)
17KG
N.W. (200w Brushless motors)
16KG
Distance from footrest to seat
350mm
Armrest to seat distance
200mm
Horizontal position of the shaft
732mm
Minimum Turning Radius
≤1100mm
Maximum controller output current
45A
Maximum charger output current
2A
Chassis height
90mm
G.W.
23KG
